Rubber cutting machine

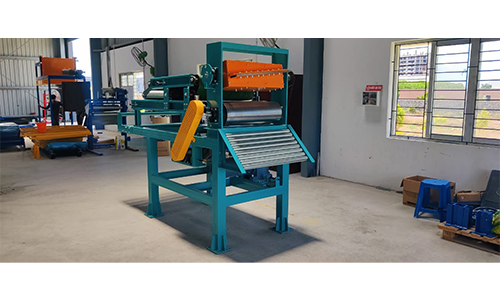

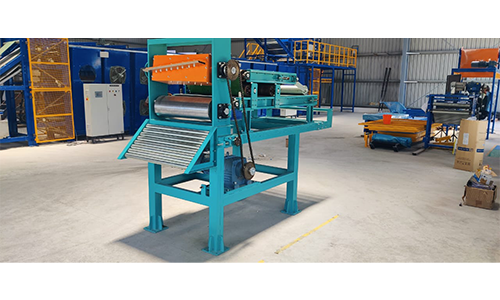

Our Sheet Feeder & Cutter is designed to cut rubber sheets and feed them directly into the weighing conveyor. It’s the ideal solution for efficient and smooth handling of rubber sheets in rubber processing plants.
| Technical specifications | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Cutting rotating speed |
~20 r/min |
||||||||||
|
Maximum width of applicable sheet |
900mm |
||||||||||
|
Maximum thickness |
15mm (Single layer) |
||||||||||
|
Cutter turning diameter |
490mm |
||||||||||
|
Feeding conveyor belt speed |
0~30 m/min (VFD – Optional) |
||||||||||
|
Conveyor belt width |
1000mm |
||||||||||
|
Machine dimension (L x W X H in mm) |
4000 x 2000 x 2500 |
||||||||||
|
Weight of the machine |
~3000 kg |
||||||||||
|
Power supply |
3 Phase / 415 VAC |
||||||||||
|
Operation |
Automatic (Integrate with weighing conveyor) / Manual |
||||||||||
|
Safety |
Fencing / Emergency stop |
||||||||||
