We specialize in providing high-quality roller conveyor systems designed to streamline material handling in a variety of industries. Our conveyors are engineered for durability, efficiency, and safety, making them the ideal choice for transporting goods with ease.

Gravity Roller Conveyors

Ideal for moving goods with minimal effort, gravity roller conveyors rely on gravity to transport items along the rollers. These conveyors are perfect for applications where manual or downhill movement is sufficient, such as order fulfilment or assembly lines.

Technical specifications

Model No. Load / m Roller Diameter Roller Pitch Conveyor Width (Inner)
AGRC-25
35kg
35mm
37.5mm < 150mm
300 – 1600mm
AGRC-50
45kg
48mm
50mm < 150mm
300 – 1600mm
AGRC-75
65kg
48mm
50mm < 150mm
300 – 1600mm
AGRC-100
90kg
63mm
75mm < 200mm
300 – 1200mm
AGRC-125
100kg
63mm
75mm < 200mm
300 – 1200mm
AGRC-150
125kg
89mm
100mm < 200mm
300 – 1200mm

Motorised Roller Conveyor

For applications requiring automatic movement, these systems are ideal for light duty application. Driven by 24V DC motorised drive rollers with integral DC circuitry. Space-saving design, Low energy consumption, Low-noise running, Maintenance-free operation.

Technical specifications

Model No. Load / m Roller Diameter Roller Pitch Drive Conveyor Width (Inner)
AMRC-50
35kg
48mm
75mm, 100mm & 125mm
Poly “V” & “O” Ring
300 – 1000mm

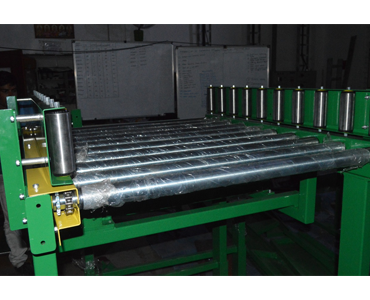

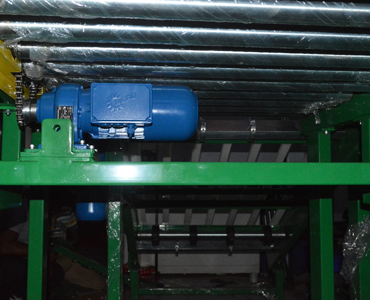

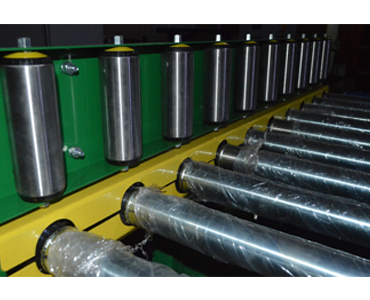

Powered Roller Conveyors

For applications requiring automatic movement, our powered roller conveyors use motor-driven rollers to transport goods. These systems are ideal for long distances, uphill transportation, or when precise control over the speed and direction of materials is needed.

Technical specifications

Model No. Load / m Roller Diameter Roller Pitch Conveyor Width (Inner)
APRC-50
50kg
35mm
50mm < 150mm
300 – 1600mm
APRC-75
100kg
48mm
50mm < 150mm
300 – 1600mm
APRC-100
125kg
63mm
75mm < 200mm
300 – 1600mm
APRC-125
150kg
89mm
100mm < 200mm
300 – 1600mm

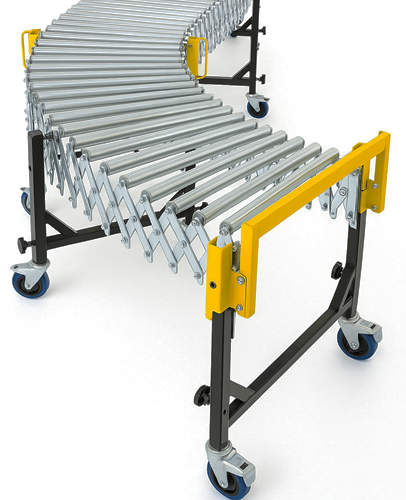

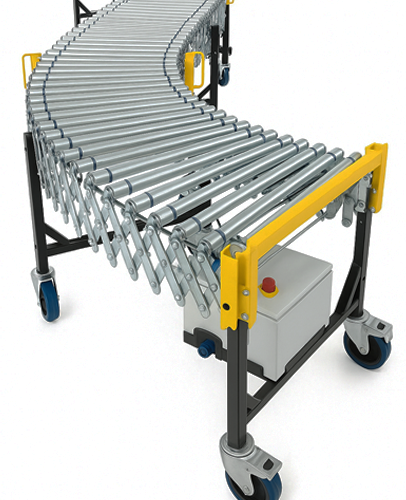

Flexible Roller Conveyors

Our flexible expandable conveyors offer versatile and portable solutions for material handling in various applications, from loading docks to packaging areas. Easily expand, contract, and curve these conveyors to fit your specific needs. We offer three main types:

  • Powered Roller Conveyor:

    Utilizes powered rollers to automatically move goods along the line, ideal for inclines or applications requiring consistent flow and minimal manual effort.

  • Gravity Roller Conveyor:

    Relies on gravity and the slight incline of the conveyor to move items. A cost-effective solution for moving goods in a declining path or with a push.

  • Gravity Skate wheel Conveyor:

    Employs multiple skate wheels per axle allowing for smooth movement of a wider range of product sizes and shapes, and offering excellent maneuverability for directing flow around curves.

Technical specifications

Model No. Load / m Conveyor Width Roller Diameter
Powered Roller
50 kg
300 – 900mm
40,50mm
Gravity Roller
100 kg
300 – 900mm
40,50mm
Gravity Skatewheel
100 kg
300 – 900mm
Skatewheel 50mm

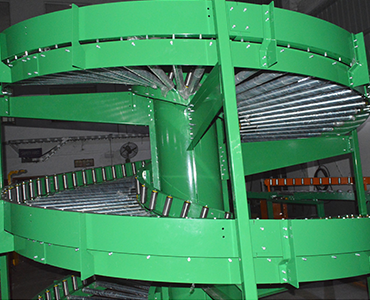

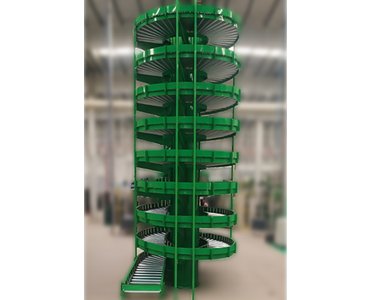

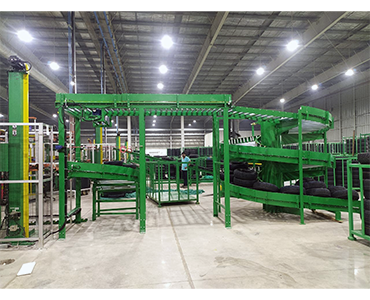

Spiral Gravity Roller Conveyors

We offer spiral gravity roller conveyors designed to save floor space while efficiently moving products between different levels. Our spiral conveyors use the power of gravity to transport items smoothly and continuously downwards, making them an ideal solution for vertical material handling in industries like warehousing, packaging, and distribution. Whether you are transporting boxes, totes, or other items, our spiral gravity conveyors can be customized to handle various product sizes and weights.

Technical specifications

Model No. Load / m Roller Diameter Roller Pitch Conveyor Width (Inner)
AGRC-25
35kg
35mm
37.5mm < 150mm
300 – 1000mm
AGRC-50
45kg
48mm
50mm < 150mm
300 – 1000mm
AGRC-75
65kg
48mm
50mm < 150mm
300 – 1000mm

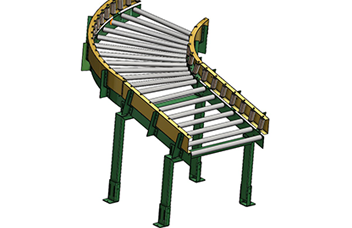

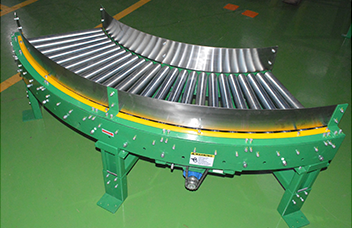

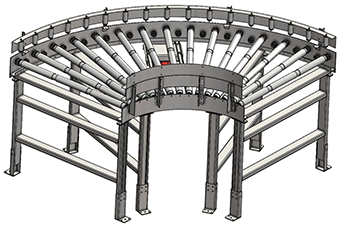

Curved Roller Conveyors

Our Curve Roller Conveyor is designed to smoothly transfer materials around corners and tight turns while maintaining alignment and spacing. Engineered for high-performance material handling systems, it’s the ideal solution for applications requiring directional changes without stopping or lifting products.
Model No. Load / m Roller Diameter Roller Pitch Angel Conveyor Width (Inner)
ACRC-50
50kg
48mm
50mm < 150mm
45°, 60°, 90°, and 180°
300 – 1600mm
ACRC-75
100kg
48mm
50mm < 150mm
45°, 60°, 90°, and 180°
300 – 1600mm
ACRC-100
125kg
63mm
75mm < 200mm
45°, 60°, 90°, and 180°
300 – 1600mm
ACRC-125
150kg
89mm
100mm < 200mm
45°, 60°, 90°, and 180°
300 – 1600mm
