Downstream

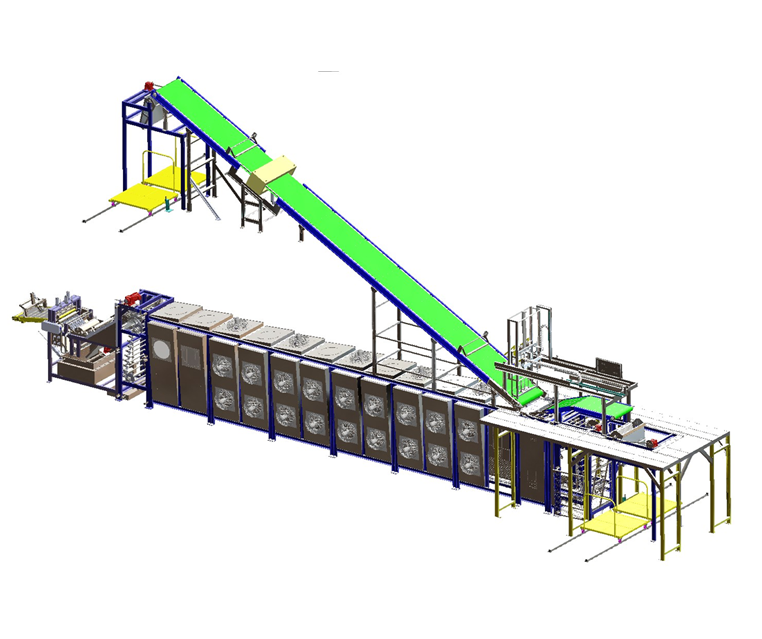

Downstream line – Rubber Compounding Machinery

After the intensive mixing process in Intermix or Banbury mixers, the downstream line ensures smooth, safe, and efficient handling of hot rubber compounds. Our downstream machinery is engineered to deliver seamless material flow, optimized cooling, and organized stacking – readying the compound for further processing or storage.

Mixer Entry Chute

  • Positioned directly beneath the Intermix or Banbury mixer, the Mixer Entry Chute plays a crucial role in guiding hot

  • Rubber discharge directly into the dump mill.

  • Designed for robust handling of high-temperature compounds

  • Ensures safety and containment of rubber discharge

  • Custom-fit design based on mixer output configuration

  • Minimizes material wastage and improves operator ergonomics

Inclined Belt Conveyor

  • The Inclined Belt Conveyor transfers the processed rubber sheet from the dump mill to the batch-off machine.

  • Independent DOL starter panel provided for individual operation

  • Inclined design enables smooth upward movement of hot rubber sheets

  • Heavy-duty construction ensures long-term performance under heat and load

  • Optional speed control for process flexibility

Batch-Off Machine

The Batch-Off Machine is the final stage of the downstream line, designed to cool, handle, and stack the rubber sheet for storage or further use. It integrates multiple functional zones:

  • Infeed Conveyor

    Receives rubber sheet from the inclined conveyor and feeds it into the cooling section.

  • Dip Tank

    Cools the rubber sheet using water-based immersion. Optional anti-stick additives can be integrated.

  • Festoon Unit

    Temporarily stores the sheet in a looped formation to extend cooling time. Provides even cooling and sheet relaxation Prevents surface deformation

  • Outfeed Conveyor

    Collects the cooled rubber sheet for stacking.

  • Wig-Wag Unit

    Distributes the rubber sheet uniformly across the pallet width. Programmable stroke control Minimizes manual intervention

  • Palletizing Unit

    Organizes cooled rubber sheets into manageable stacks for easy transport and storage.
