Our Batch-Off Machines are designed for effective cooling, anti-tack treatment, and stacking of rubber sheets from the open mill. Available in three configurations based on floor space and customer requirements:
-
Hanger Type
-

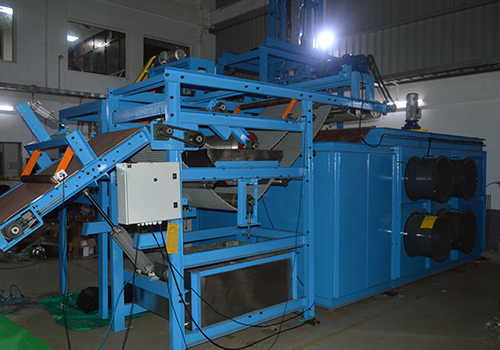

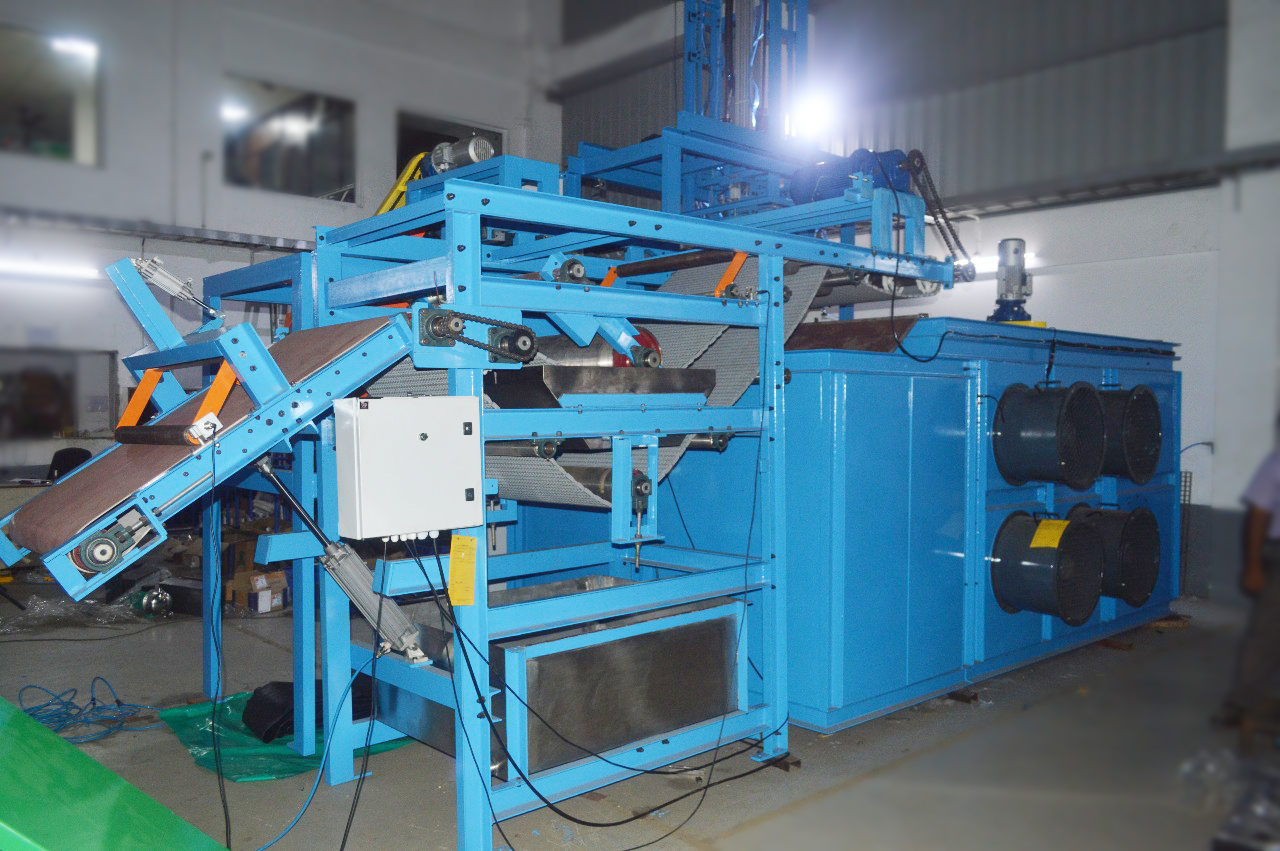

Cantilever (U-Type)
-

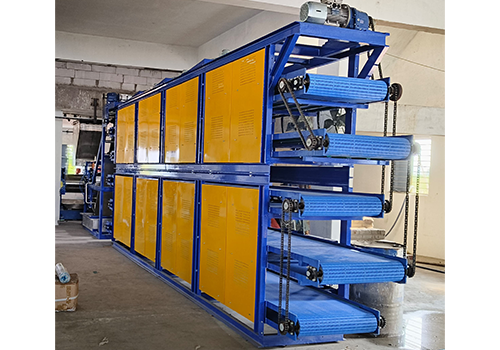

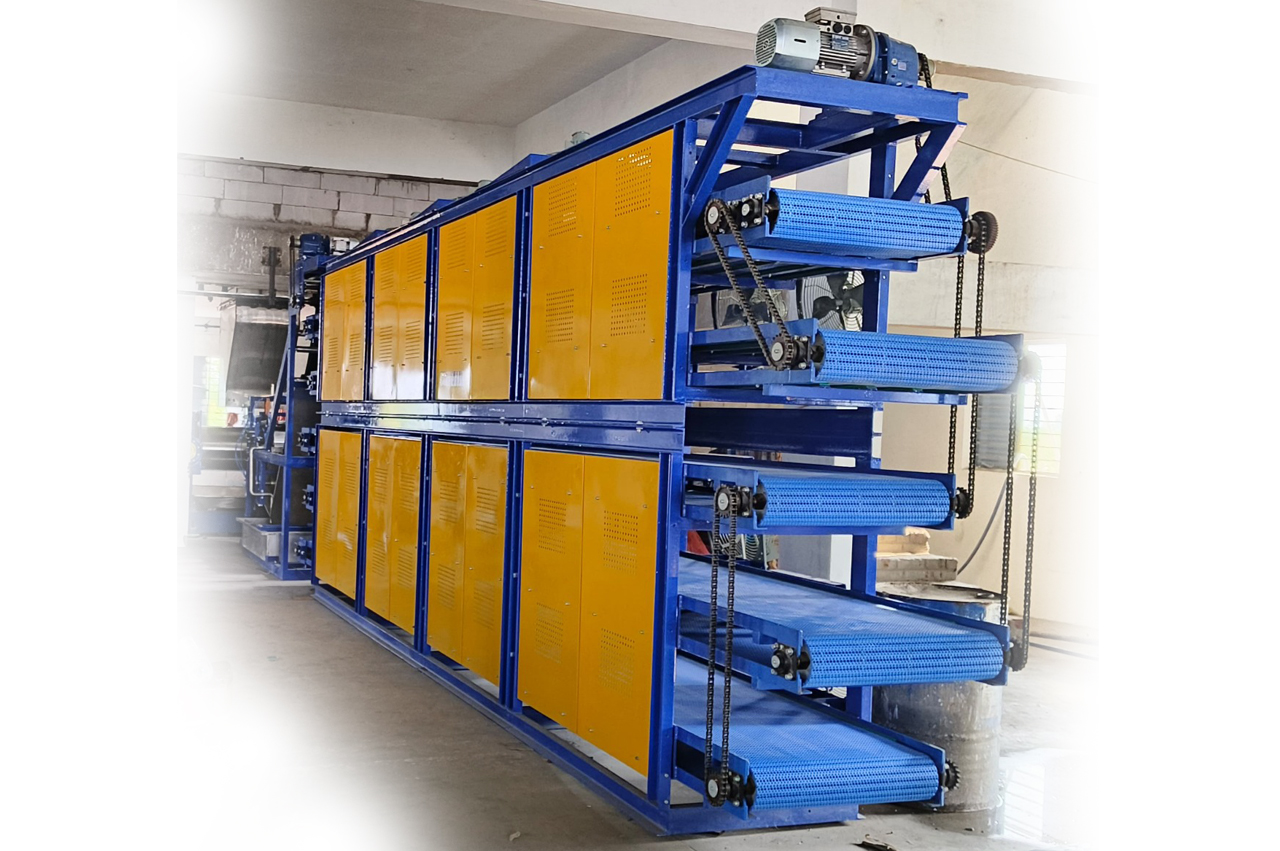

Mesh Type
Each system is engineered for seamless integration with rubber processing lines, ensuring uniform cooling and easy handling.
| Technical specifications | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Convey speed |
~30 m/min (Controlled by Automatic integrated with mill / Manual) |
||||||||||
|
Rubber sheet width |
350-750mm |
||||||||||
|
Outlet rubber temperature |
Room temperature +/- 5 deg C |
||||||||||
|
Machine dimension (L x W x H in mm) |
Minimum 10m x 2m x 2.5m |
||||||||||
|
Dip tank capacity |
Minimum 200 litter |
||||||||||
|
Dipping conveyor belt |
Modular belt |
||||||||||
|
Hanger pitch |
6 inch |
||||||||||
|
Hanger material |
Mild steel – Galvanized / Stainless steel 304 |
||||||||||
|
Festoon conveyor belt (mesh type) |
Modular / Wire mesh |
||||||||||
Key Modules of the Batch-Off Line
-
Receives rubber sheet directly from the open mill
-
Equipped with stamping unit and slitter unit
-
Conveyor speed is adjustable (manual or automatically synced with mill speed)
-
Dual tank system: Dip Tank + Storage Tank for anti-tack solution
-
Pump circulates solution from storage to dip tank
-
Includes inclined belt conveyor to move sheets into the festoon unit
-
We provide Anti-tack mixing solution (optional)
-
Varies based on space: Hanger, U-type, or Mesh
-
Integrated cooling fans for fast temperature reduction
-
Speed automatically synchronized with infeed conveyor
-
Chiller unit (Optional)
-
Pneumatically powered gripper mechanism
-
Transfers rubber sheet from festoon unit to outfeed conveyor
-
Moves vertically (bottom to top) and horizontally (left to right) for precise placement
-
Ensures smooth sheet handling without manual intervention
-
Transports rubber sheet toward final stacking area (wig-wag unit)
-
Oscillates to distribute sheets evenly on the pallet
-
Pallet shifter by pneumatically operated (Empty pallet loading, Loading station and un-loading station)
-
Output recording station (Integrated with our RMS)
-
Auto Palletizing Unit Automates the collection of rubber sheets from the wig-wag unit—reducing manual effort and increasing efficiency.
